How to Remove MTB Cranks Without Puller: Safe Options by Crank Type
Most MTB cranks cannot be removed safely without the correct extractor unless they are self-extracting or pinch-bolt external-bearing designs. Identify the crank type first, remove only what the design allows, and stop if the arm is square-taper or splined without a built-in extractor.
A stuck crank arm can turn a five-minute repair into a ruined bottom bracket if the wrong shortcut is used. The safe answer to how to remove mtb cranks without puller depends on crank design, not force.
Can MTB cranks come off without a puller?
MTB cranks can come off without a puller only when the crank uses a self-extracting bolt, a Shimano Hollowtech II style pinch-bolt arm, or another external-bearing system with a removable preload cap. Traditional square-taper, ISIS, and Octalink crank arms normally need a crank puller or extractor to avoid damage.
Like our cycling guides?
Add Wise Wheeling as a Google Preferred Source so our latest bike repair, commuter cycling, and gear guides appear more often in your Google results.
Add Wise Wheeling as a Preferred SourceCrank puller: a threaded tool that screws into a crank arm and pushes against the bottom bracket spindle to remove press-fit crank interfaces such as square taper, ISIS, and Octalink.
Bicycle pedal: Wikipedia defines the pedal as the part pushed by the rider’s foot that connects the shoe to the crank, allowing the leg to turn the drivetrain (Bicycle pedal). That connection matters because crank removal often starts by moving pedals, bolts, and washers out of the way.
Key insight: If the crank arm has internal threads for an extractor but no self-extracting cap, prying is usually a damage shortcut, not a repair method.
Crank type check before any tool touches the bike
| Crank system | Puller-free removal? | Safe method |
|---|---|---|
| Shimano Hollowtech II style | Yes | Loosen pinch bolts, lift safety plate, remove preload cap |
| SRAM DUB or similar self-extracting | Yes | Turn the main bolt against the retaining cap |
| Square taper | Usually no | Use a crank puller |
| ISIS or Octalink | Usually no | Use the correct splined puller |
| Unknown budget MTB crank | Assume no | Inspect markings, cap design, and spindle interface |
The common online advice is divided because forums mix different crank standards. A Cycling UK forum thread mentions hardwood wedges as a non-destructive idea, while other riders describe pry-bar methods. Those tricks are last-resort salvage methods, not a first repair choice.

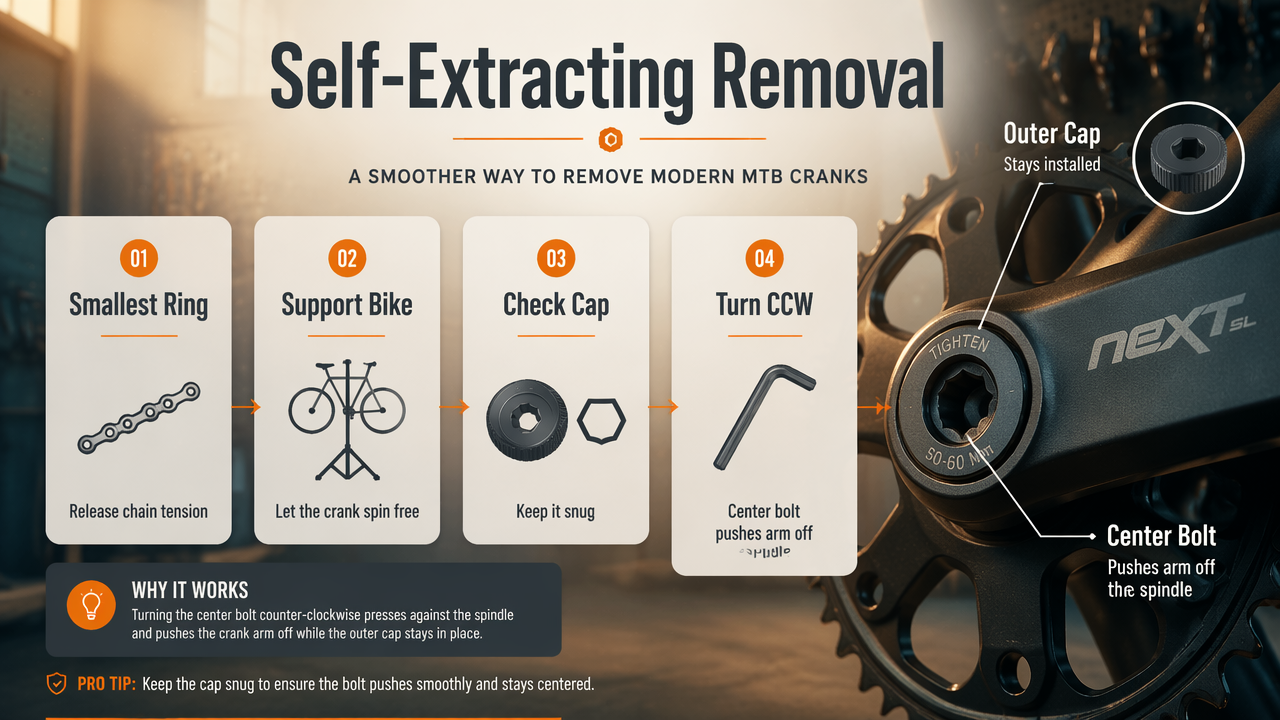

How to remove mtb cranks without puller on self-extracting systems
Removing MTB cranks without a puller is straightforward on self-extracting systems because the extractor is already built into the crank bolt and outer cap. The main rule is simple: the outer cap must stay installed while the center bolt is turned counterclockwise.
- Shift the chain onto the smallest chainring or remove chain tension.
- Support the bike so the crank can rotate freely.
- Check that the self-extracting cap is present and snug.
- Insert the correct hex key into the center bolt.
- Turn counterclockwise with steady pressure.
- Let the bolt push the crank arm off the spindle.
- Catch any spacers and note their order.
A missing outer cap changes the job completely. Without that cap, the bolt may simply back out and leave the crank arm stuck on the spindle.
For riders building or swapping mixed-surface bikes, the same drivetrain logic applies during parts selection. The Wisewheeling platform’s guide to building a gravel bike from parts is useful when checking bottom bracket and crank compatibility before buying used components.
Useful video for external-bearing crank removal
This video is most relevant for Shimano-style external-bearing cranks, not square-taper cranks. The visual detail helps confirm the role of the preload cap, pinch bolts, and safety plate before removal.
How pinch-bolt MTB cranks come off without an extractor
Pinch-bolt MTB cranks come off without an extractor because the left crank arm clamps to a spindle instead of being wedged onto a taper. Shimano Hollowtech II style cranks are the best-known example.
- Remove the small plastic preload cap with the correct cap tool.
- Loosen both left-arm pinch bolts evenly, a few turns at a time.
- Lift or release the small safety tab if fitted.
- Slide the left crank arm off the spindle by hand.
- Pull the drive-side crank and spindle through the bottom bracket.
- Keep spacers, wave washers, and dust covers in order.
No hammer should be needed on a clean, correctly loosened external-bearing crank. Light hand pressure is normal; impact force suggests corrosion, missed hardware, or a different crank standard.
Key insight: A crank that was designed to slide off should not need prying. If it does, the repair has moved from removal into diagnosis.
A drivetrain job often exposes shifting or chainline issues. After refitting the crank, checking cable tension and indexing with a guide such as how to index a rear derailleur can prevent poor shifting from being blamed on the crank installation.
Tool list for puller-free crank jobs
- Correct hex keys, commonly 5 mm, 6 mm, or 8 mm depending on crank model
- Shimano-style preload cap tool when needed
- Torque wrench for reassembly
- Degreaser and rag for spindle and bolt faces
- Grease or anti-seize for clean metal interfaces
- Phone photo of spacer order before removal
The small preload cap is not a crank-retaining bolt. Its job is bearing preload before the pinch bolts are tightened, so it should not be overtightened during reassembly.

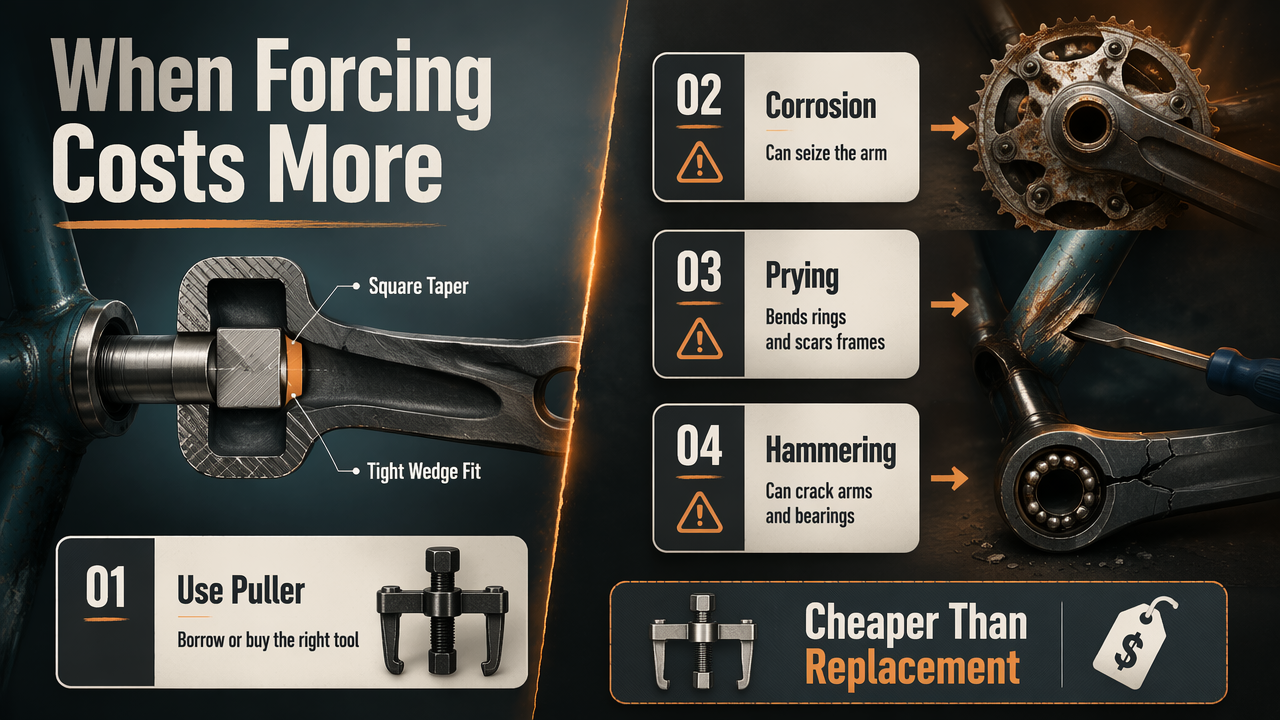

When forcing the crank arm becomes the expensive option
Forcing a crank arm is risky when the arm is square-taper, ISIS, Octalink, corroded, or missing extractor hardware. These interfaces hold by a tight wedged fit, so prying can bend chainrings, scar the frame, crack aluminum arms, or damage bottom bracket bearings.
A cheap crank puller usually costs less than a replacement crankset. That is why the safest practical advice is to borrow or buy the correct puller when the interface is not self-extracting.
Hammers deserve special caution. Tapping a spindle during a full bottom bracket replacement can be valid on some designs, but hitting a stuck crank arm while the bearings remain installed often transfers shock into parts that were not meant to take it.
Riders who are also solving brake rub, wheel removal, or post-service safety checks can pair this repair with bike brake adjustment steps, especially after any work that changes chainstay or crank clearance.
Troubleshooting table for stuck MTB cranks
| Symptom | Likely cause | Best next move |
|---|---|---|
| Bolt comes out but arm stays stuck | No self-extracting cap | Stop and use a puller |
| Pinch-bolt arm will not slide off | One bolt still tight or safety tab engaged | Recheck both bolts and tab |
| Crank creaks after reinstall | Dry spindle, loose bolts, wrong preload | Clean, grease, torque correctly |
| Puller threads look stripped | Damaged crank-arm threads | Use shop-grade extraction support |
| Arm moves slightly then jams | Corrosion or spacer bind | Clean, support bike, avoid prying |
Some forum answers suggest screwdrivers, pry bars, or wedges because they can work on already-doomed parts. For a usable MTB crank, non-destructive removal should preserve the arm, spindle, threads, bearings, and frame paint.
FAQs: removing MTB cranks without a puller
I recommend treating puller-free crank removal as safe only after the crank standard has been identified. For more repair guides and practical bike setup articles, visit wisewheeling.com before starting a drivetrain job that affects chainline, fit, or braking.
Can a square-taper MTB crank be removed without a puller?
A square-taper MTB crank normally should not be removed without a crank puller. The arm is pressed onto a tapered spindle, and the extractor pushes it off in a controlled line. Prying may remove the arm, but it can also damage the crank, spindle, bearings, or frame finish.
Is loosening the crank bolt enough to ride the arm loose?
Riding with a loosened crank bolt is unsafe and can permanently enlarge the crank’s interface. A loose crank may feel like it will work free, but the rocking load can ruin the arm and create a crash risk. Proper extraction is safer and usually cheaper.
Why do some MTB cranks remove with only an Allen key?
Some MTB cranks have self-extracting hardware. The center bolt threads out against a fixed outer cap, and that cap pushes the arm off the spindle. If the cap is missing, damaged, or not designed for extraction, an Allen key alone will not remove the crank safely.
What should happen after the crank is reinstalled?
The crank should spin smoothly with no side play, scraping, or clicking under load. Bolts should be tightened to the crank maker’s torque values, spacers should match their original order, and the chain should track cleanly. Any brake or shifting change after the job deserves a separate safety check.
Conclusion
The safest way to approach how to remove mtb cranks without puller is to identify the crank first, then use only the method that matches that design. Self-extracting and pinch-bolt cranks can come off cleanly with basic tools; square-taper, ISIS, and Octalink cranks deserve the correct extractor. For the next repair, record crank markings, spacer order, and bolt sizes before parts come off.
