Why Is Bike Suspension Fork Lockout Not Working? It May Not Be Broken
A fork lockout that still moves is not always broken. First confirm whether the knob or remote cable is moving the damper, then separate normal blow-off movement from weak lockout caused by cable tension, misalignment, low damper oil, or service wear.
A bike suspension fork lockout not working usually means the control is moving but the damper is not closing fully, or the fork was never designed to become completely rigid. Check the top knob or remote cable first, then test whether the fork becomes firmer under slow compression.
Many forks allow blow-off movement for impact safety, while loose knobs, stretched cables, low damper oil, or worn seals can make lockout feel useless.
Like our cycling guides?
Add Wise Wheeling as a Google Preferred Source so our latest bike repair, commuter cycling, and gear guides appear more often in your Google results.
Add Wise Wheeling as a Preferred SourceSuspension fork lockout: a damper control that restricts fork compression, mainly to reduce bob while climbing, sprinting, or riding smooth surfaces.
Bicycle suspension, as defined by Wikipedia, is the system used to insulate the rider and bicycle from terrain roughness.
What does a working fork lockout actually do?
A working fork lockout usually reduces low-speed compression, but it may not make the fork fully solid. Most modern suspension forks still move under enough force because the damper has bypass ports, oil flow paths, or a blow-off valve that protects internal parts and rider control.
A useful test is slow compression, not a hard bounce. With the lockout open, the fork should move more freely. With it closed, the same body-weight push should feel firmer, slower, or shorter. If both settings feel identical, the control may not be moving the damper.
Key insight: lockout is a firmness control, not a steel rod through the fork. A small amount of movement can be normal.
Lockout behavior also varies by fork type:
- Budget coil forks: often feel vague, with simple mechanical lockout parts and less refined damping.
- Air forks: usually show a clearer difference because air pressure and damper circuits are more adjustable.
- Higher-end XC forks: may feel almost rigid on smooth ground, then open under a sharp hit.
- Trail forks: often prioritize traction and safety over a harsh, fully locked feel.
A rider coming from rigid bikes, hybrids, or gravel setups may expect lockout to feel like a solid fork. That expectation causes many false alarms. For broader bike choice context, Wisewheeling’s guide to hardtail vs full suspension mountain bikes explains why suspension design changes climbing feel, comfort, and maintenance needs.

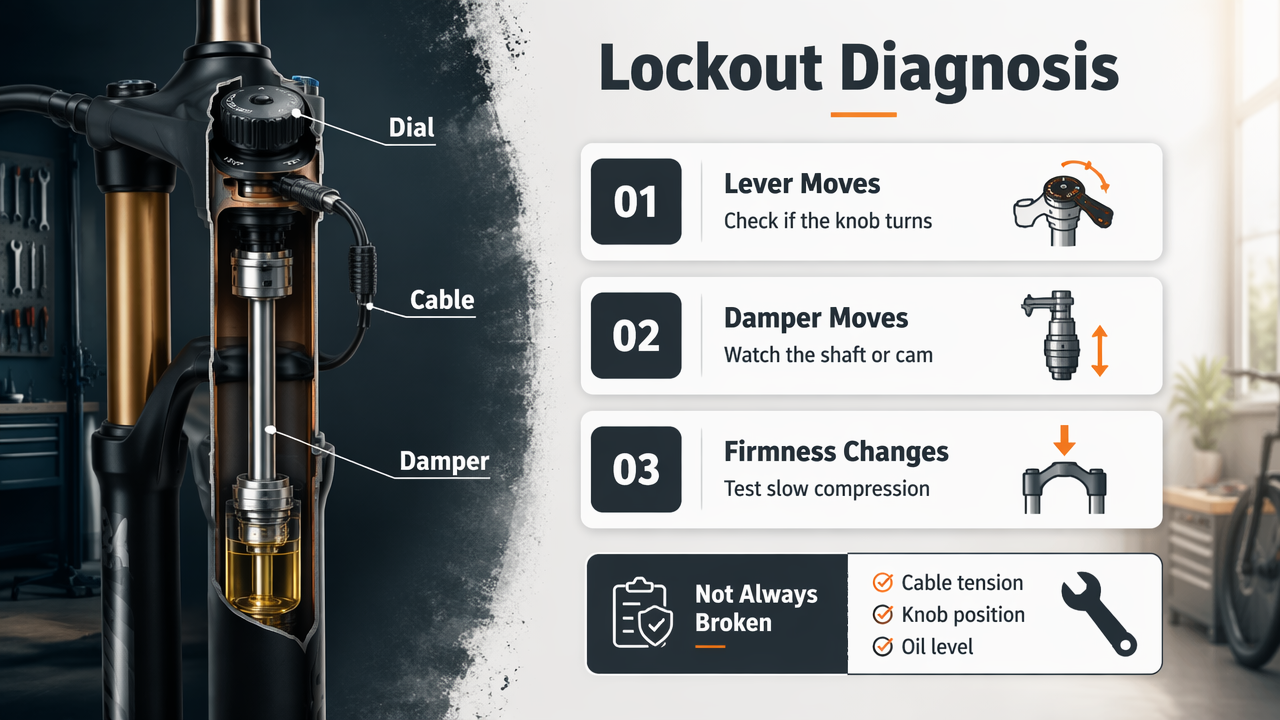

How can a rider diagnose a bike suspension fork lockout not working?
A rider can diagnose a bike suspension fork lockout not working by separating three questions: does the lever move, does the damper shaft or lockout mechanism move, and does the fork become firmer during slow compression. This prevents replacing a fork when the real fault is cable tension, knob position, or oil level.
Diagnostic table for common lockout symptoms
| What the Lockout Does | Likely Cause | First Check | DIY or Shop? |
|---|---|---|---|
| Lever turns but fork feels unchanged | Loose top-cap knob or misaligned dial | Remove knob, inspect flats or set screw, reinstall aligned | DIY if external only |
| Remote lever moves but nothing changes | Cable slack, stretched cable, wrong clamp position | Watch cable pull at fork crown | DIY for adjustment |
| Fork gets slightly firmer only | Normal blow-off or basic damper design | Slow push test on smooth ground | Usually normal |
| Works after cycling fork several times | Oil migration after storage or air in damper | Compress fork 10 to 20 times upright | DIY test, shop if repeated |
| Stopped after upside-down storage | Damper oil temporarily displaced | Stand bike upright, cycle fork gently | DIY first |
| Stopped after wash, crash, or service | Water, impact, misassembly, damaged adjuster | Inspect housing, knob, cable path, top cap | Shop if damaged |
| Lockout slowly became weak | Low damper oil or worn seals | Look for oil residue, poor rebound, weak compression | Shop service likely |
What should be checked before replacing the fork?
The best first checks are external, low-cost, and reversible. A lockout failure often starts outside the fork, especially on remote systems where the handlebar lever, cable, housing, ferrules, and fork-side actuator all need the correct travel.
- Set the fork upright and clean the crown area.
- Open and close the lockout while watching the knob or cable anchor.
- Confirm the top knob is seated on the shaft flats, not spinning above them.
- Check that a remote cable pulls the actuator through its full range.
- Add cable tension only until the actuator reaches the lockout stop.
- Test slow compression in both positions.
- Avoid riding rough trails with the fork forced locked.
A loose top-cap knob can mimic internal failure. Some knobs use a small screw or a shaped underside that must match the damper shaft. If the knob was removed during service, transport, or cleaning, it can be reinstalled one position off, which makes the dial show “lock” while the damper remains open.
Remote lockouts add another layer. Cable stretch can leave the fork halfway between open and locked. Too much tension can also prevent full return. The same cable logic applies to derailleurs, and Wisewheeling’s rear derailleur indexing guide gives a useful parallel for understanding tension, housing drag, and small adjuster changes.
Common external clues include:
- A remote lever that feels floppy or does not return.
- Housing that popped out of a frame stop or fork stop.
- A crown actuator that moves only partway.
- A knob that lifts, rattles, or spins without resistance.
- Lockout failure immediately after washing, boxing, roof-rack transport, or a crash.
Washing matters because high-pressure water can push grit near seals and controls. Storage matters because upside-down or side storage can let oil move inside some damper layouts. A fork that firms up after several upright compressions may need observation before parts are ordered.

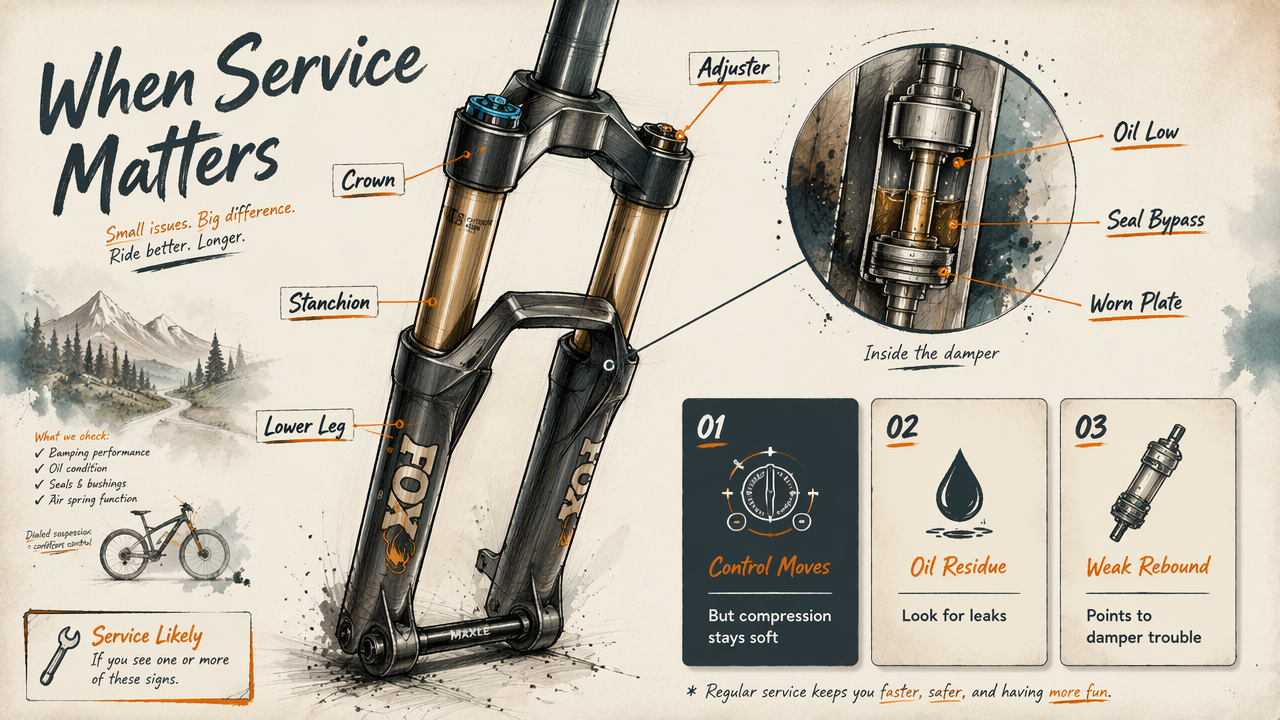

When is damper oil or service the likely cause?
Damper service becomes more likely when the control clearly moves the internal mechanism but compression does not change. In that case, the damper may not have enough oil in the right chamber, seals may be bypassing oil, or an internal lockout plate, port, or cartridge part may be worn.
A weak lockout paired with poor rebound control points more toward a damper issue than a cable issue. Oil residue on the stanchion, crown, lower leg, or adjuster area also raises the odds. Old forum answers in the SERP often mention oil leaking past seals, and that remains a practical clue, but a proper diagnosis still starts with external movement checks.
Do not treat every weak lockout as a reason to ride harder with the fork closed. Locked-out riding on rough terrain can reduce traction and send bigger impacts through the damper. Many forks have blow-off systems for this reason, but blow-off is not a license to smash through rocks while locked.
Repair video reference for damper-style lockout problems
Coil, air, budget, and higher-end forks also differ in feel:
| Fork type | Lockout feel | Service clue |
|---|---|---|
| Basic coil fork | May feel more like “stiffer” than locked | External knob faults are common |
| Entry air fork | Clearer firmness change when adjusted correctly | Air pressure and damper both matter |
| XC air fork | Often very firm on smooth climbs | Blow-off movement can be normal |
| Older cartridge fork | Lockout may fade with oil or seal wear | Damper rebuild or cartridge replacement likely |
A shop visit makes sense when the fork has oil leakage, repeated loss of lockout after upright cycling, crash damage, stuck controls, or uncertain service history. Brake safety should be checked after any front-end work, and the Wisewheeling brake adjustment guide covers the stopping checks that belong after fork removal or wheel refitting.
What are the most useful lockout questions before a shop visit?
The most useful pre-shop questions identify whether the issue is normal behavior, external adjustment, or internal damper failure. Clear notes save labor time and help a mechanic avoid chasing the wrong fault.
Bring or record these details:
- Fork brand, model, and approximate year.
- Whether the system uses a crown knob or handlebar remote.
- Whether the problem appeared after storage, washing, transport, service, or impact.
- Whether rebound still works normally.
- Whether the fork gets firmer at all under slow compression.
- Whether oil residue appears near the crown, seals, or lower legs.
FAQs: real rider lockout scenarios
Why does lockout work only after cycling the fork a few times?
Lockout that returns after several compressions often points to temporary oil migration or air bubbles after storage on the side or upside down. Standing the bike upright and cycling the fork gently may restore normal feel. If the problem returns every ride, damper service becomes more likely.
Is a remote lockout broken if the handlebar lever moves normally?
A moving handlebar lever only proves the lever moves. The cable may be slack, the housing may be unseated, or the fork-side actuator may not reach the lockout stop. The crown actuator must be watched directly while the remote is pressed.
Should a new rider expect a locked fork to be completely rigid?
Most suspension forks should not be expected to become completely rigid. Many lockouts reduce bob during climbing and smooth riding while still allowing impact movement. A small, controlled amount of compression can be normal, especially on forks with blow-off protection.
When should riding stop and service start?
Riding should stop if the fork tops out harshly, leaks oil, binds, has crash damage, or loses damping in both open and locked modes. A weak lockout alone may allow careful smooth-road riding, but rough terrain should wait until the cause is confirmed.
Conclusion
A bike suspension fork lockout not working is best treated as a diagnosis, not an automatic fork replacement. The smartest order is simple: confirm normal blow-off expectations, inspect the top knob, verify remote cable travel, test the fork upright after storage, then consider damper oil or service if the control moves but firmness never changes.
The next action is to perform the slow-compression test, note when the problem started, and photograph the crown or remote mechanism before any parts are removed. If oil leakage, crash damage, or no damping appears, a suspension shop should inspect the damper before the next trail ride.
