Why Does Chain Fell Behind Cassette into Spokes? Causes and Easy Fix

Quick Answer

A chain jammed behind the cassette is a rear-wheel safety event, not a normal dropped chain. Stop pedaling, free the chain without levering against spokes, inspect the wheel and hanger, then reset the low-limit screw before riding again.

When a chain fell behind cassette into spokes, the safest first move is to stop pedaling immediately because the rear wheel, derailleur hanger, spokes, and cassette can all take load at once. This failure often appears during a shift into the easiest gear, after L-limit screw adjustment, or on a used bike that was never checked under load.

What should a rider do first when the chain jams behind the cassette?

A rider should stop pedaling, avoid forcing the cranks, shift pressure off the drivetrain, and inspect the rear wheel before trying to pull the chain free. The cause is usually excess derailleur travel toward the spokes, commonly from a mis-set low-limit screw, bent derailleur hanger, crash impact, or unchecked used-bike setup.

If the chain drops past the largest rear cog, stop, lift the rear wheel, and try to back the crank gently only if the wheel still turns. If the chain is wedged tightly, remove the rear wheel only if it comes out cleanly. Otherwise, cassette removal is safer than prying against spokes.

Terminology: Low-limit screw: the rear derailleur stop screw that prevents the derailleur from moving too far inward toward the spokes when shifting into the largest cog.

Key insight: A chain behind the cassette is not just bad indexing. It means the derailleur was allowed to send the chain into the wheel side of the cassette.

For riders building mixed-surface bikes, drivetrain clearance checks belong beside frame fit, tire clearance, and gearing choices. Wisewheeling covers those larger setup decisions in its guide to building a gravel bike from the frame up.

Emergency diagnosis table

What Happened	Likely Cause	Damage to Check	Safe Next Step
Chain dropped behind largest cog	Low-limit screw too loose	Spoke scratches, derailleur cage marks	Stop and reset low limit
Chain stuck between cassette and spokes	Overshift under load	Bent spokes, twisted chain links	Free gently or remove cassette
Rear wheel locked	Chain wrapped near spoke heads	Hub shell, freehub area, spokes	Do not ride until inspected
Happened after L-screw adjustment	Limit screw backed out too far	Cassette teeth, hanger alignment	Re-adjust in small turns
Used bike failed on first ride	Prior crash or poor setup	Hanger, derailleur, wheel true	Shop hanger alignment check

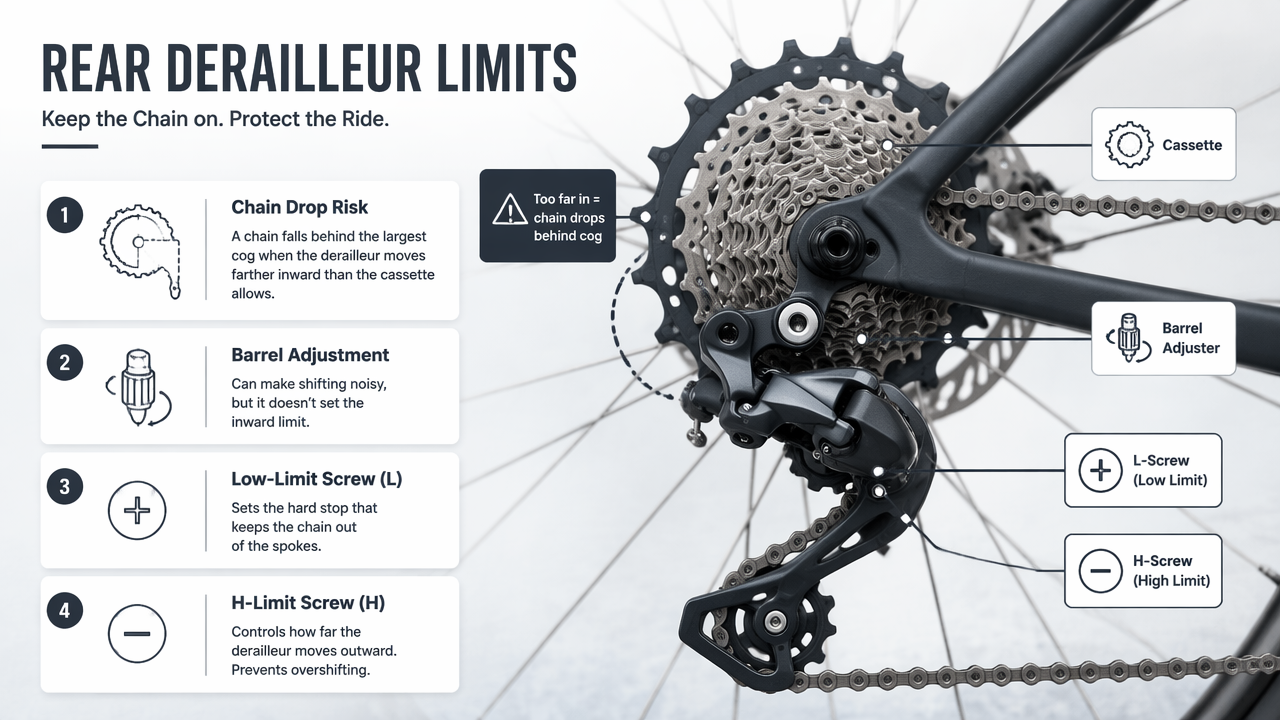

Why can a chain fall behind the largest cog into the spokes?

A chain falls behind the largest cog when the rear derailleur moves farther inward than the cassette allows. Barrel adjustment can make shifting noisy, but the low-limit screw controls the hard stop that keeps the chain out of the spokes.

Most modern rear derailleurs have two limit screws. The H-limit controls outward travel near the smallest cog. The L-limit controls inward travel near the largest cog. If the L-limit is too far out, a shift into the easiest gear can push the chain past the sprocket.

A bent derailleur hanger can create the same result even when the L-limit screw looks close. The hanger is the replaceable tab that holds the derailleur. A small bend can move the derailleur cage inward, so the guide pulley aims between the largest cog and the wheel.

Common real-world triggers include:

• A rider turns the L-limit screw the wrong way while tuning gears.
• A trail impact bends the hanger toward the wheel.
• A used bike arrives with an unverified derailleur setup.
• A new wheel, cassette, or derailleur changes spacing slightly.
• A hard low-gear shift happens while climbing under load.

John Allen’s long-running chain-jam guidance on Sheldon Brown’s site treats chain derailment as a crash-risk and damage-risk event, not a cosmetic issue. His article, If the Chain Falls Off or Jams, is useful background because it separates simple chain re-engagement from incidents where a chain jams against moving parts. A Bicycles Stack Exchange repair discussion on a chain falling between cassette and spokes also highlights the need to inspect the chain, spokes, and rear wheel area rather than assuming only the chain is affected.

Shop logic: If the derailleur can move the chain into the spokes once, the bike should not be treated as fixed until the derailleur travel limit and hanger alignment are verified.

How should a stuck chain be removed without damaging spokes?

A stuck chain should be removed by reducing drivetrain tension first, then easing the chain out in the direction that avoids bending spokes. Forcing the pedals, pulling hard on a spoke, or levering with a screwdriver can turn a recoverable jam into a damaged wheel.

Follow this order:

1. Stop pedaling and keep the bike still.
2. Shift the rear shifter one or two clicks away from the easiest gear.
3. Lift the rear wheel and check whether it rotates freely.
4. If the wheel moves, backpedal gently while guiding the chain outward.
5. If the chain is wedged, release the rear brake if needed for wheel removal.
6. Try removing the rear wheel only if it drops out without force.
7. If the chain remains trapped behind the cassette, remove the cassette with the correct lockring tool and chain whip.

Cassette removal is often safer when the chain is pinned between sprocket ramps and spoke crossings. Loosening the cassette creates room without using the spokes as pry bars. Competitor forum answers often mention improvised string or spoke-flex tricks, but those methods depend on wheel design and can scratch or bend thin spokes.

A master link can help if the chain is kinked or wrapped. Opening the quick link reduces tension, but it does not fix the root cause. After reassembly, the rear derailleur still needs low-limit verification.

Helpful drivetrain maintenance video

Chain lubrication will not prevent an L-limit overshift, but a clean, flexible chain makes inspection easier. Stiff links after a jam should be replaced or repaired before riding long distance. For general chain-tension context on flat-bar and trail bikes, see Wisewheeling’s guide to tightening a mountain bike chain.

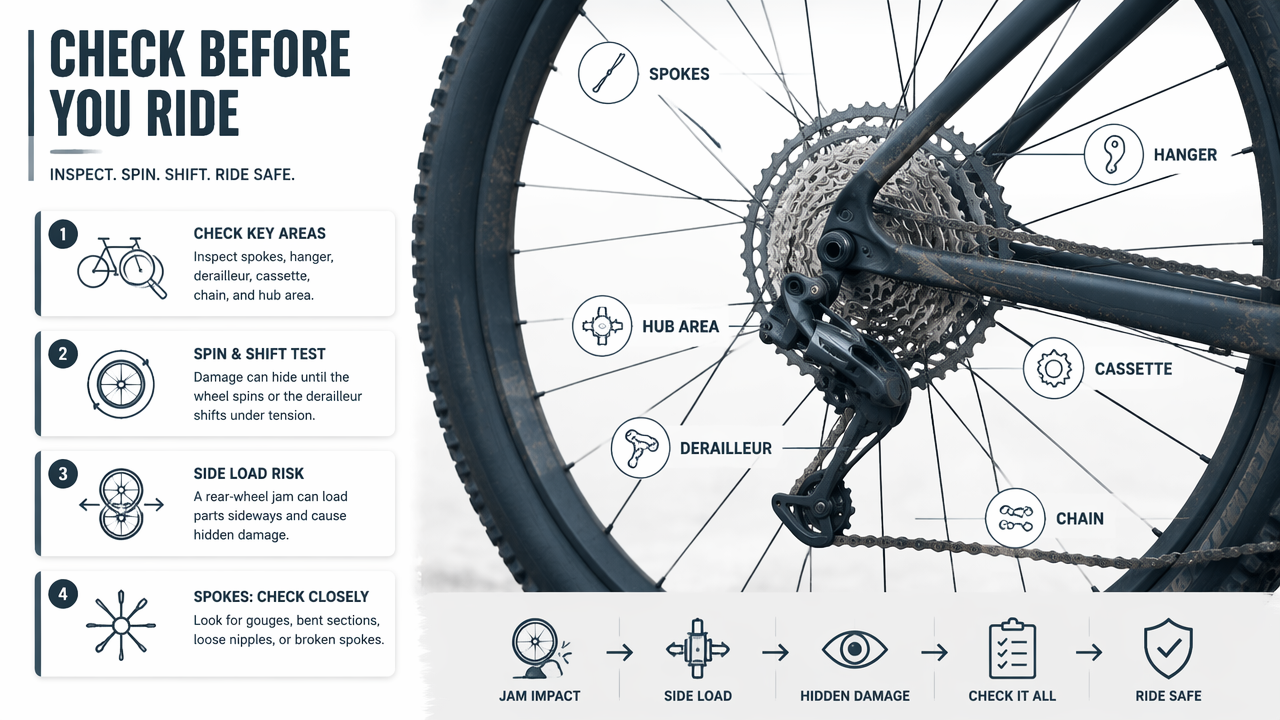

What damage must be checked before riding again?

The bike should be checked for spoke, hanger, derailleur, cassette, chain, and hub-area damage before riding again. A rear-wheel jam can load parts sideways, and some damage only appears when the wheel spins or the derailleur shifts under cable tension.

Post-jam inspection checklist

• Spokes: look for gouges, bent sections, loose nipples, broken heads, and spoke wind-up near the hub.
• Wheel true: spin the wheel and watch for side wobble or hop.
• Derailleur hanger: inspect from behind the bike; the derailleur cage should sit parallel to the cassette.
• Derailleur cage: check for twisting, pulley damage, and rubbing on the spokes.
• Cassette: look for scarred teeth, bent ramps, and chain burrs between the largest cog and carrier.
• Chain: inspect for stiff links, twisted plates, cracked rollers, and quick-link distortion.
• Hub and freehub area: check whether the wheel spins smoothly without scraping or grinding.

A plastic spoke protector, often called a dork disc, can reduce spoke damage if a chain overshifts. It does not correct the L-limit screw, a bent hanger, or poor derailleur alignment. Treat it like a guardrail, not a repair.

A shop inspection is the safer choice when spokes are bent, the wheel no longer runs true, the derailleur touched the spokes, or the hanger alignment looks questionable. Hanger alignment is measured with a dedicated gauge, and visual checks can miss a small bend.

Used bikes deserve extra caution. A bike may shift fine on a repair stand but fail during the first hard climb if the hanger is bent or the limit screw was never tested under load. Beginner riders choosing bike styles can reduce early setup surprises by reading Wisewheeling’s guide on whether a gravel bike is good for beginners.

How can the chain be prevented from going behind the cassette again?

The chain can be prevented from going behind the cassette by setting the low-limit screw correctly, checking hanger alignment, confirming cable tension, and testing shifts under controlled load. The fix is mechanical control, not hope.

A reliable prevention process looks like this:

1. Put the chain on the largest rear cog and smallest front ring, if the bike has multiple chainrings.
2. Turn the cranks by hand while shifting slowly into the easiest gear.
3. Set the L-limit screw so the guide pulley lines up under the largest cog, not inside it.
4. Add cable tension only after the travel limit is correct.
5. Check that the derailleur cannot push the chain toward the spokes when the shifter is pressed again.
6. Test all gears while pedaling lightly, then repeat after a short ride.

Barrel adjusters fine-tune indexing between sprockets. They should not be used to stop a derailleur from entering the spokes. If extra cable tension is added to make low gears easier to reach, a poor L-limit setting can become dangerous.

Future drivetrain designs in 2026 continue moving toward wider cassettes, clutch derailleurs, and electronic shifting, especially on gravel and all-road bikes. These systems still need correct limit setup, hanger alignment, or software end-stop calibration. Riders comparing practical mixed-surface bikes can pair drivetrain checks with fit and use-case decisions in Wisewheeling’s guide to alternative gravel bikes.

FAQs

Is it safe to ride home after the chain falls into the spokes?

Riding home is only reasonable if the chain comes free cleanly, the wheel spins true, spokes are tight, and the derailleur no longer shifts past the largest cog. Any scraping, wobble, loose spoke, bent hanger, or repeated overshift means walking, calling for pickup, or visiting a shop is safer.

Does a bent derailleur hanger always look obvious?

A bent hanger often looks normal to the eye. Even a small inward bend can aim the derailleur pulley toward the spokes under low-gear shifts. A shop hanger-alignment gauge is the proper check when a chain has jammed behind the cassette or the derailleur touched the wheel.

Can a spoke protector fix this problem?

A spoke protector can reduce scratches or spoke damage during an overshift, but it does not fix the cause. The real correction is setting the low-limit screw, checking hanger alignment, and confirming the derailleur cannot move the chain beyond the largest cog.

Conclusion

When a chain fell behind cassette into spokes, the repair is only half complete after the chain is freed. The safer sequence is stop, release tension, avoid prying on spokes, inspect wheel and drivetrain damage, then correct the low-limit screw and hanger alignment before another ride. If the wheel locked, spokes bent, or the derailleur entered the wheel, book a professional inspection before pedaling again.

For related bicycle setup decisions and maintenance reading, visit wisewheeling.com and keep a cassette tool, quick-link pliers, and a basic derailleur-check routine in the home repair kit.
