Why Does Rear Tire Rub Frame Only When Pedaling Hard? Diagnose Load-Based Tire Rub

Quick Answer

If a rear tire clears the frame while stationary but rubs during climbing, sprinting, or standing pedaling, the issue is usually movement under load. Start with wheel seating, axle tightness, dish, spoke tension, and true before blaming tire width. Stop riding if the rub is severe, sudden, or paired with loose spokes, cracked frame paint, or axle movement.

A rear tire rubs frame only when pedaling hard because the bike is being tested under torque, not just clearance. Static gaps can look fine in a work stand, then disappear when chain force, rider weight, spoke tension, axle seating, tire casing flex, and frame movement act together.

Load-based tire rub: rear tire contact that appears only while riding hard, usually from wheel, axle, tire, or frame movement that does not show during a no-load inspection.

Why does the rear tire rub only under pedaling load?

The rear tire rubs under pedaling load because the rear triangle, wheel, axle, spokes, and tire casing all move slightly when torque rises.

Chain tension pulls on the right side of the drivetrain, rider weight loads the rear wheel, and out-of-saddle efforts twist the bike side to side. A small gap beside the chainstay can vanish if the wheel shifts 1 to 2 mm or the tire casing flexes sideways.

This is common on gravel bikes, mountain bikes, and endurance road bikes with larger tires. It also shows up after a wheel removal, tire change, spoke loosening, cassette-side repair, or hard impact.

Load-related rub is different from constant rub

Constant rub usually points to an obviously misaligned wheel, oversized tire, bent rim, or debris stuck in the frame. Load-only rub is harder because the bike can pass a casual garage check.

A practical repair order works best:

1. Re-seat and tighten the rear wheel.
2. Spin the wheel and inspect lateral wobble.
3. Compare tire clearance on both stays.
4. Check spoke tension by feel and sound.
5. Test with a narrower or smoother tire if clearance is tight.
6. Ask a shop to inspect dish, dropout alignment, and frame damage if the issue remains.

Key point: a tire that clears by a few millimeters in the stand may still be too close for real riding force, especially with wide gravel or MTB casings.

Static clearance can mislead riders

Bike forums often describe the same pattern: the wheel looks centered until the rider climbs or sprints. One Bicycles Stack Exchange discussion about rear wheel rub while standing highlights how load, wheel position, and flex can expose clearance problems that are invisible during a still inspection.

For gravel setups, tire clearance should account for casing width, knob height, rim internal width, mud, and flex. Riders comparing all-road and gravel builds can review what counts as an alternative gravel bike before assuming the frame accepts every tire that fits while stationary.

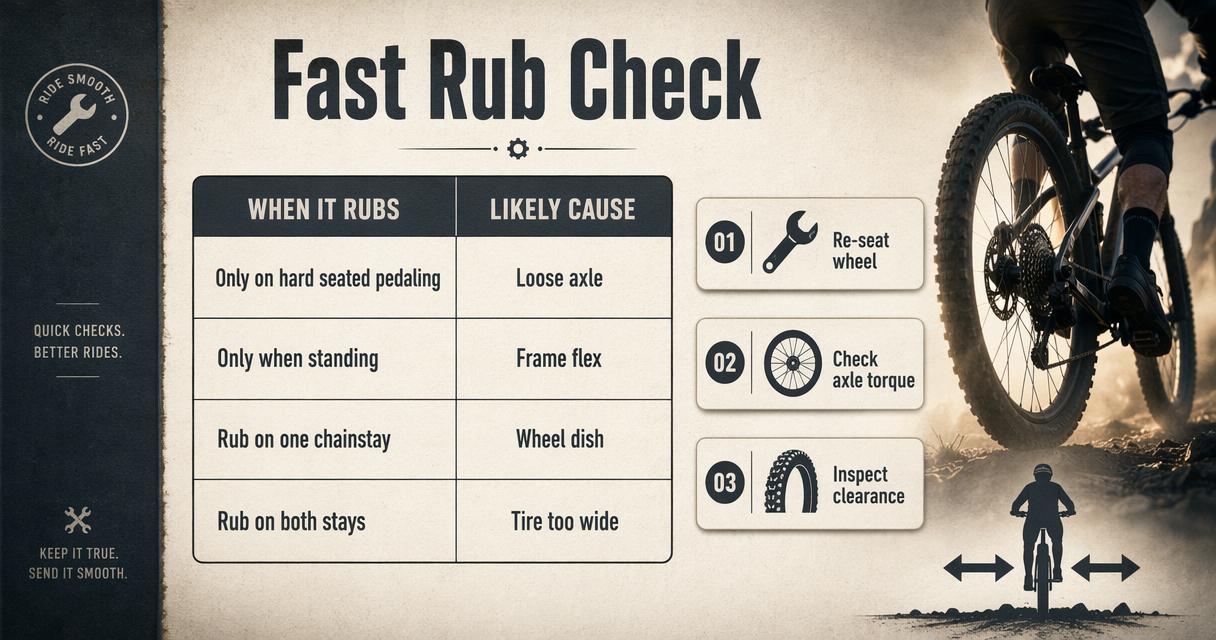

What is the fastest diagnostic table for rear tire rub?

The fastest diagnosis is to match the timing of the rub with the part most likely to move under load.

Small clues matter:

• Rub on one chainstay suggests wheel centering, dish, dropout seating, or frame alignment.
• Rub at both stays suggests tire width, mud buildup, or tire casing growth.
• Rub after reinstalling a wheel points first to axle seating.

Rear tire rub diagnosis by riding symptom

When It Rubs	Likely Cause	First Check	Safe to Ride?
Only during hard seated pedaling	Loose axle, weak spoke tension, slight wheel movement	Re-seat wheel and check axle torque	Maybe, after correction
Only when standing or sprinting	Frame and wheel flex reducing tight clearance	Inspect side clearance under rider load	Caution
After wheel removal	Wheel not fully seated in dropouts	Open, re-seat, tighten, recheck center	Usually after fixing
After installing wider tire	Tire casing or knobs too wide for real clearance	Measure side and top clearance	No, if contact continues
Rubs one chainstay only	Poor dish, bent dropout, mis-seated wheel	Compare rim center between stays	Caution
Rubs with mud or gravel buildup	Not enough practical mud clearance	Clean tire and frame, inspect gap	No in muddy conditions
Sudden rub after impact	Bent rim, broken spoke, frame damage	Check spoke count, rim wobble, cracks	Stop riding

The table should guide the first inspection, not replace it. Severe rubbing can cut the tire sidewall, damage paint, or hide a cracked frame or failing wheel.

Brake rub can confuse the diagnosis

Some riders hear rubbing and assume the tire is hitting the frame, but a rotor, rim brake pad, or front derailleur cage may be the real source. Wikipedia’s bicycle brake overview notes that the two main bicycle brake types are rim brakes and disc brakes, and both can make rhythmic rubbing sounds.

The clean test is visual. Look for shiny marks, black rubber streaks, worn paint, or sidewall scuffing on the chainstay, seatstay, or inside bridge. If no tire mark exists, inspect the brake rotor, caliper, rim brake pads, and derailleur cage next.

How should the wheel, axle, dish, and spokes be checked?

The rear wheel should be checked from the outside inward: axle seating first, then trueness, dish, and spoke tension.

A wheel can be perfectly round but poorly centered in the frame. It can also be centered at rest but move sideways because several spokes are loose. Hard pedaling magnifies both problems.

Axle seating comes before truing

Quick-release wheels must sit fully inside the dropouts before the lever is closed. Thru-axle wheels must slide squarely through the hub and frame, then tighten to the manufacturer’s torque guidance.

A wheel removed for transport, puncture repair, or cleaning can sit slightly crooked. That small error often appears as one-sided tire rub. On bikes with horizontal or semi-horizontal dropouts, chain pull can also drag the wheel forward if clamping force is weak.

A simple check helps:

• Loosen the axle.
• Push the wheel fully into the dropouts.
• Center the tire between the stays.
• Tighten the quick-release or thru-axle correctly.
• Spin the wheel and recheck clearance.
• Pedal gently before a hard sprint test.

Wheel dish and spoke tension control side clearance

Wheel dish describes whether the rim sits centered between the hub locknuts or axle ends. A dished wheel can look biased toward one chainstay even when the axle is seated correctly.

Spoke tension matters because a low-tension rear wheel can flex more under torque. Loose spokes often make uneven tones when plucked, may feel soft compared with neighboring spokes, and can allow the rim to wander during hard pedaling.

A home check can find obvious trouble, but a shop’s dishing tool and spoke tension meter give a more reliable answer. Riders building mixed-surface bikes can reduce future clearance issues by planning wheel, tire, and frame compatibility early, as covered in how to build a gravel bike.

Wheel true is not the same as wheel center

A true wheel has limited side-to-side rim wobble when spun. A centered wheel sits evenly between the chainstays and seatstays. Both must be right.

A rider can zip-tie a pencil or plastic marker to the frame near the rim, spin the wheel, and watch the gap. If the rim moves toward one side once per revolution, the wheel needs truing. If the rim stays steady but sits closer to one stay, dish or frame alignment needs inspection.

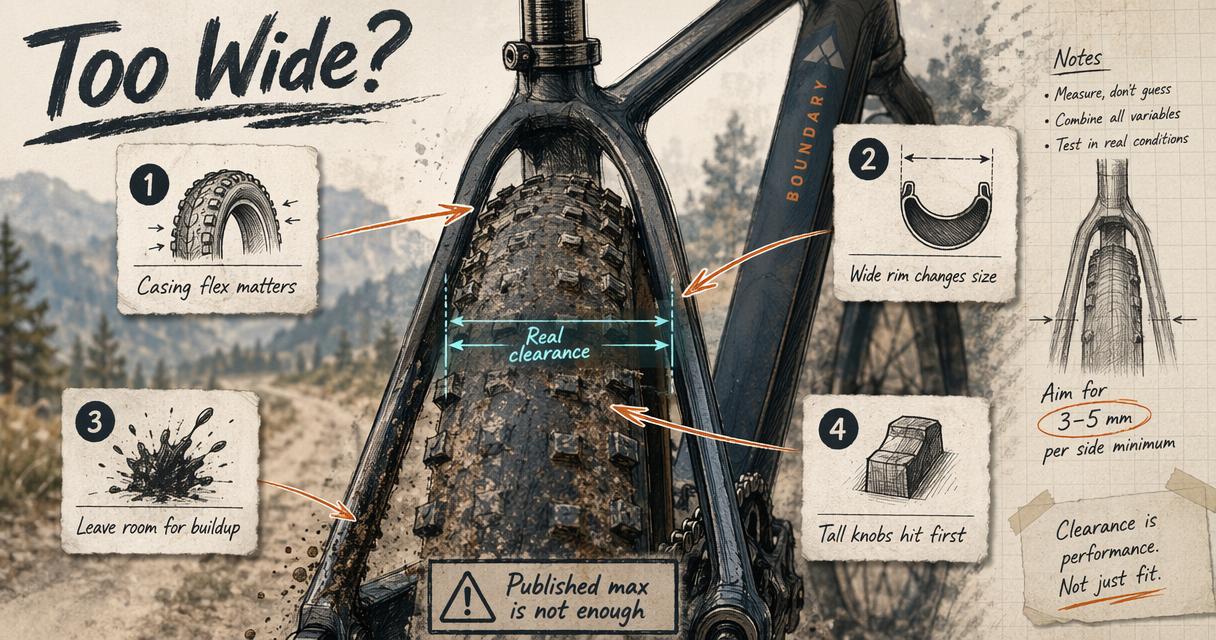

When is the tire simply too wide for the frame?

A tire is too wide when real riding leaves no safe clearance for casing flex, wheel flex, mud, and small alignment errors.

Published maximum tire clearance often describes a clean tire, a specific rim width, and ideal wheel position. Real tires vary by brand, casing, tread, pressure, and rim internal width. A labeled 40 mm tire may measure wider on a modern wide rim, while tall side knobs can contact stays before the smooth casing does.

Tire casing, knobs, pressure, and mud all change clearance

Wider tires are not only wider side to side. They can also become taller, rounder, and more flexible depending on pressure and rim width. Knobby gravel and MTB tires may clear at the casing but rub at the side knobs when the bike leans or twists.

Mud makes the problem worse. A frame with tight dry clearance may become unsafe on wet gravel because packed dirt acts like a moving sanding belt between the tire and frame.

Practical minimum thinking:

• More clearance is needed for mud than dry pavement.
• Knobs need side clearance, not just centerline clearance.
• Rear tires flex more under climbing load.
• Low pressure can increase casing movement.
• Wide rims can make the same tire measure larger.

Frame material and design affect flex, but rubbing is not normal

Frame flex is normal. Excessive tire contact is not. Steel, aluminum, carbon, and titanium frames all move under load, though the pattern depends on tube shape, dropout design, rear triangle stiffness, rider power, and wheel build.

Riders comparing comfort-focused frame materials should separate useful compliance from unsafe clearance. The Wisewheeling guide on whether steel is good for a gravel bike explains why ride feel and practical tire space should be judged together.

The Wisewheeling platform generally favors the conservative choice for mixed-surface riders: enough clearance for the worst ride expected, not just the largest tire that spins indoors.

When should riding stop and a shop inspect the bike?

Riding should stop when tire rub is sudden, severe, worsening, or linked to loose spokes, axle movement, frame damage, or sidewall scuffing.

A light polish mark after testing a marginal tire is different from a tire that audibly scrapes during every climb. Repeated contact can weaken the tire sidewall and remove frame material or paint, especially on carbon frames where hidden damage needs expert evaluation.

Stop-riding signs before the next hard effort

A bike shop inspection is the safest next step when any of these signs appear:

• One or more spokes are broken, very loose, or repeatedly loosening.
• The rear wheel shifts position after the axle is tightened.
• The rim has a visible dent or strong lateral wobble.
• The tire sidewall has cuts, threads, or fresh scuffing.
• Paint is cracked around dropouts, stays, or suspension shift.
• A full-suspension bike has loose shift hardware.
• The rub started after a crash, pothole strike, or hard landing.

Maintenance skill helps, but wheel tension, carbon inspection, and dropout alignment often need proper tools. Brake noise should also be ruled out, and bike brake adjustment guidance can help separate brake rub from tire rub.

FAQs:

Why does the tire clear in the stand but rub while riding?

The stand removes rider weight and pedaling torque. During real riding, chain force, wheel flex, frame flex, and tire casing movement reduce clearance. Tight frames may pass a static spin test and still rub under climbing or sprinting load.

Can a loose quick-release cause rear tire rub?

A loose or poorly seated quick release can let the rear wheel sit crooked or shift under chain force. The wheel should be fully seated in both dropouts before the lever is closed with firm resistance.

Does wheel dish matter if the wheel spins straight?

Wheel dish still matters. A wheel can spin straight but sit off-center between the stays. That reduces clearance on one side and can create rubbing only when the bike is loaded.

Is frame flex always a problem?

Normal frame flex is not a defect. Tire contact under normal riding is the warning sign. If clearance disappears during ordinary climbing, the tire may be too large, the wheel may be weak, or the frame and axle should be inspected.

Conclusion

Rear tire rubs frame only when pedaling hard is best treated as a load test failure, not a mystery noise. The safest sequence is simple: re-seat the rear wheel, verify axle tightness, inspect true and centering, check dish and spoke tension, then reassess tire width and mud clearance.
